Rotating Trey Table

This project was requested from a customer for a factory set up. The intention was to make a manually rotatable table that can hold treys to be filled and then a fork lift could come move the trey.

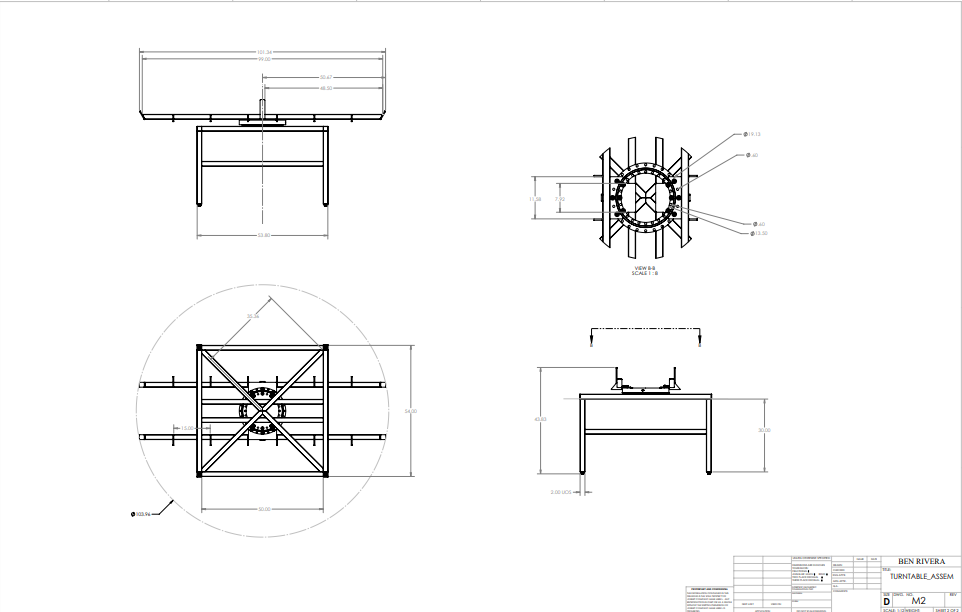

Several iterations of table were designed but in the end this model was the most economic. It was to be made of 2" square pipe and 3/8" steel that were cut with a water jet.

The table was delivered as a kit to save on transportation cost. It was implemented soon after its construction and 5 more are to be made in the coming future.
